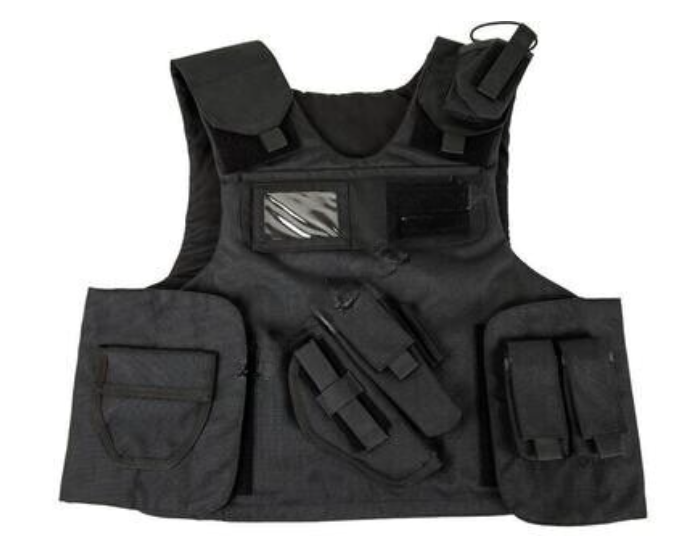

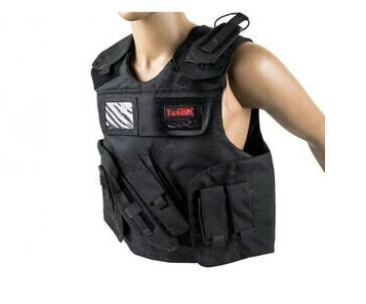

Zebra Armour Bravo 2E Vest Large

The BRAVO2E tactical over vest has adjustable shoulders and sides.

NIJ Level IIIA: See table below for ballistic specs.

This comfortable vest can be worn every day all day. This vest has internal plate pockets for adding hard armour plates.

The exterior of the vest has a single clear ID pocket on the chest.

Velcro strips measuring 100mm x 70mm can be found on the front.

Rear Velcro measuring 175mm x 50mm of the vest for identification, blood, allergy or moral patches.

The right side of the vest has a specialized handcuff pouch and the left side two handgun magazine pouches.

The Left shoulder has a radio pouch that secures the radio with a bungee to allow an secure hold.

The front side of the vest has a handgun pouch that sits a 45 degree pouch with a button snap for quick access for right hand only. Above the holster is an additional pouch that can be used for flashlights, a spare magazine, tourniquet or multi-tool.

Two bungee loops for a pens and markers on the front of the vest.

Designed to fit standard sized plates in pockets 39cm x 33cm (Sold Separately)

The soft armour vest bends to the shape of the user to allow for maximum comfort while providing protection on all sided of the user. Heavy duty Velcro side straps and shoulder straps ensure a comfortable but secure fit

for maintenance, remove the ballistic panels and wipe them down with a damp cloth. the vest can be hand or machine washed. on bravo model only the rear panel can be removed for maintenance

Thickness of both vests approximately 10mm

Large Vest

• Weight: 3.45kg


• Back panel width: 64cm


• Back panel Height: 42cm


• Front panel width: 51.5cm


• Front panel Height: 43cm

Ballistic Standards

Test variables

Performance Requirements

Shot Requirements

Armour type

Test Round

Test Bullet

Bullet Mass

Conditioned Armour Test Velocity

New Armour Test Velocity

Hits Per Panel at 0_ Depth

Maximum BFS Depth

Hits per Panel at 30_ or 45_ Angle +

Shot per Panel

Panels Size

Panels Condition

Panels Required

Shots Required

Total Shots Required

IIIA

1

.357 SIG FJM FN

8.1 g (125 gr)

430 m/s (1410 ft/s)

448 m/s (1470 ft/s)

4

44 mm (1.73 in)

2

6

Large

New

4 2

24 12

144

Small

New

4 2

24 12

2

.44 Magnum SJHP

15,6 g (240 g)

408 m/s (1340 ft/s)

436 m/s (1430 ft/s)

4

44 mm (1.73 in)

2

6

Large

New

4 2

24 12

Small

New

4 2

24 12
