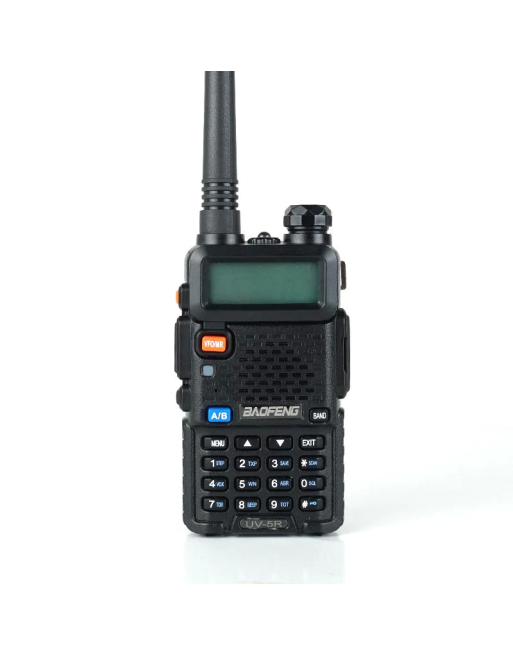

BaoFeng UV5R (8watt)
+3
+2

BaoFeng UV5R (8watt)

Store / Communication / Hand Held Radio
R1 365.00
Price incl. VAT (15%) R178.04
In stock: 10 available
Product Details

BaoFeng UV5R (8watt)

Main Features
-Dual-band handheld transceiver with display function menu on the display "LCD"
- DTMF encoded
- Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable
- Function "VOX" (voice operated transmission).
- Alarm function
- Up to 128 memory channels
- Broadband (Wide) / Narrowband (Narrow), selectable
- High power / low (8 W/1 W) selectable
- Display illumination and programmable keyboard
- Function "beep" on the keyboard
- Dual Watch/dual reception
- Function "OFFSET" (frequency offset for repeater access)
- Battery saving function "SAVE"
- Timer transmission "TOT" programmable
- Selecting the Scan Mode.
- Function Busy Channel Lock "BCLO"
- Built-in RX CTCSS/DCS scan
- Built-in LED flashlight
- Programmable by PC
- Level Threshold "Squelch" adjustable from 0 to 9
- Crossband reception/transmission
-Tone end of transmission
- Built-in key lock


GENERAL
VHF:144MHz-148MHz (Rx/Tx)
UHF:420MHz-450MHz (Rx/Tx)
Memory channels Up to 128 channels
Frequency stability 2.5ppm.
Antenna impedance 50Ω
Operating temperature -20 ℃to +60℃
Supply voltage Rechargeable Lithium-Ion mAh 7.4V/1800
Consumption in reception 380mA
Consumption in transmission ≤1.4 A
Mode of operation Simplex or semi-duplex
Duty cycle 03/03/54 min. (Rx / Tx / Standby)
Dimensions 58mm x 110mm x 32mm
Weight 130 g (approximate)

TRANSMITTER

Output power: 5W / 1W (Max 5W) / 8W

Emission class 16KΦF3E/11KΦF3E (W/N)
Maximum deviation ≤±5 kHz/≤±2.5 kHz (W/N)
Spurious emissions <-60 dB

RECEIVER
Receiver sensitivity 0.2 μV(at 12 dB SINAD)
Intermodulation 60 dB


Standard Package Content
Walkie talkie
Li-Ion battery
Antenna
Belt Clip
User's Manual
Charger

It is illegal to transmit with this radio without an Icaasa License
